Coiled Tubing ESP Cable Protectors With Low Carbon Steel Material

Coiled Tubing ESP Cable Protectors With Low Carbon Steel Material

ESP Cable Protectors Application

ESP cable

Subsurface safety valves control line

Chemical injection line

Coiled tubing

Permanent Gauges

Intelligent Wells

Fiber Optics.

ESP Cable Protector Brief Introduction

UNITOOLS is a professional producer for ESP cables, Control line and Encapsulated bundles protector .
Our protector use channels to shield cables and lines when they across coupling to prevent damage during installation or retrieval of completions

ESP Cable Protector Features

A: Each clamp has two Friction pads ,they will have pre-deformation to facilitate clamping cables and lines .
Meanwhile ,we added 1mm for each indents to increase clamping force , That’s one of our differents.

B: we have triple convex pads on the channel to improve gripping characteristics without damaging cables ,
Except that It will increase Pulling force ,because of the friction pads .

C: Two parallel hinge pin make full contact with Tubular .Other protectors’ hinge pin will have a little tapered

D: The teeth of clamp is tapered , It will be easier than paralel teeth when insert wedge-lock pin . Meanwhile, tapered pin with dimples to secure the clamp doesn’t fall off the tubing .

ESP Cable Protector Standard Size Chart

cable clamp protector

steel cable protector

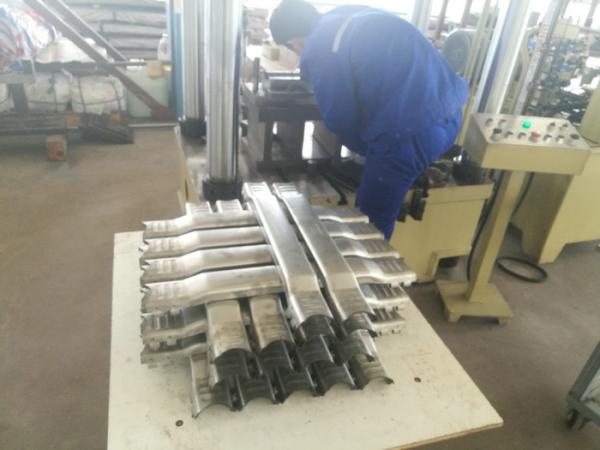

Coiled Tubing ESP Cable Protectors With Low Carbon Steel Material Images
